Bottle breakingGB150Configured for your site
Bottle breaking
GB150 / GB150T Bottle Breaker
A smaller starting point for bottle recovery.
Explore the equipmentBottle breaking

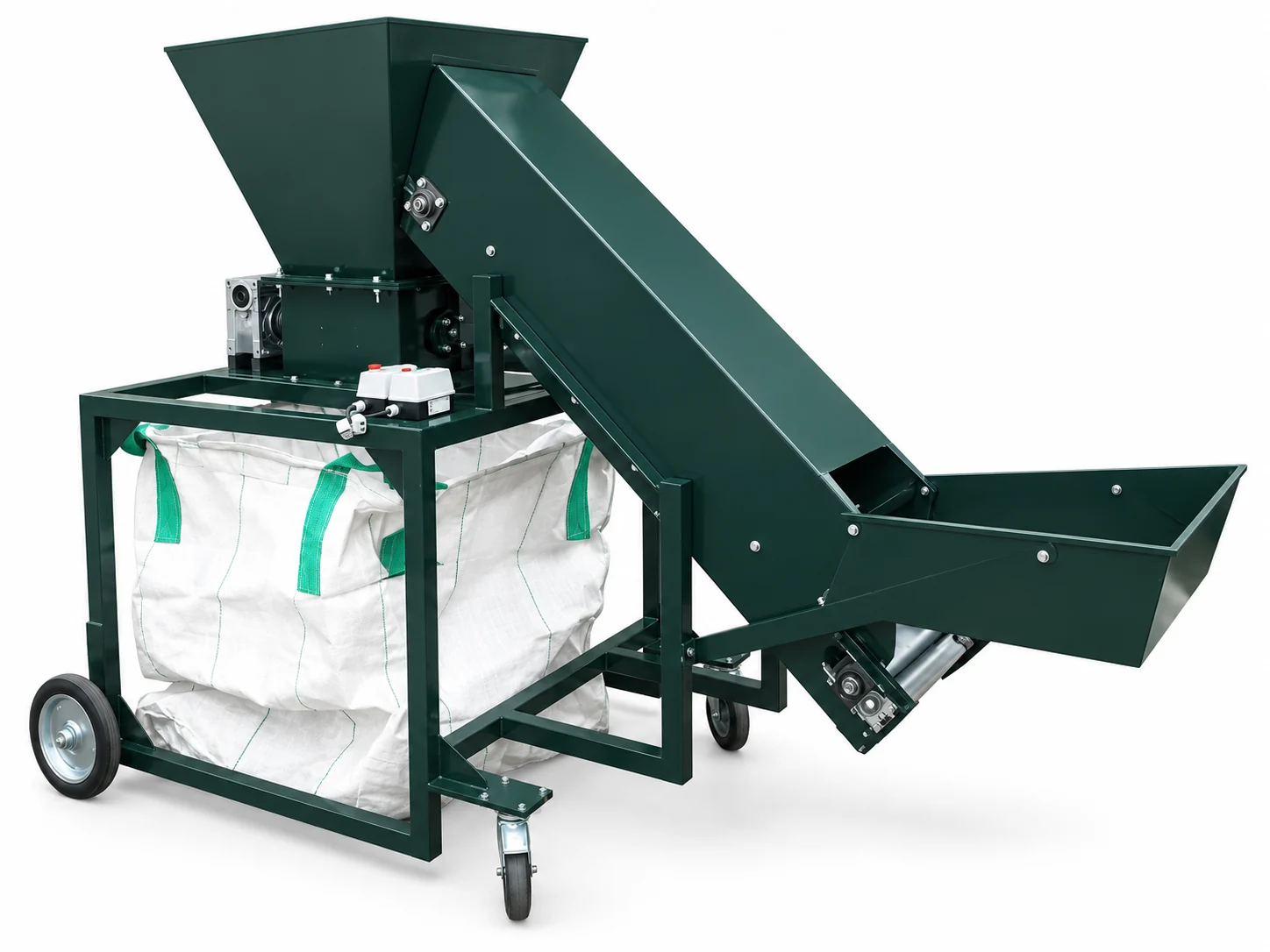

GB350T + Infeed Conveyor
Bring the loading point down. Feed the breaker continuously.
Product illustration · confirm supplied configurationTHE EQUIPMENT
Bring the loading point down. Feed the breaker continuously.
The GB350T and infeed-conveyor combination connects a lower loading hopper to the bottle breaker. It brings material feeding and cullet collection together, with the conveyor lifting glass to the breaker and a flow-bin bag collecting material beneath the head.
The original assembly sheet gives an approximate reference capacity of 1,300 kg per hour, a conveyor loading height of 860 mm and a 380 V supply. This combination has its own electrical and footprint requirements; it should be specified as an assembly. Plan access around both the loading end and the collection bag so that the line can be operated and cleared effectively.
At a glance.
| Reference capacity | Approximately 1,300 kg/h |
|---|---|
| Loading height reference | 860 mm |
| Electrical supply reference | 380 V |
| Assembly weight reference | 380 kg |
Reference figures are from available manufacturer information. Confirm the supplied configuration, feedstock, power and operating conditions in the quotation.
PLAN THE COMPLETE PROCESS
Make room for
the whole workflow.
01
Your incoming material
Describe the type of glass, the normal daily or weekly volume, and how it arrives at your site.
02
Your working space
Allow for loading, collection, operator access and the electrical supply needed for the proposed arrangement.
03
Your next destination
Identify the required output and who will use it. Screening, cleaning or additional preparation may be needed.
TAKE A CLOSER LOOK
The detail
behind the decision.
Read the original reference documents and bring your questions to the equipment discussion. Final specifications are agreed in the quotation.
ALSO IN THE RANGE
Explore the options.
LET’S FIND THE NEXT STEP
Let’s discuss
your GB350T.
Tell us what you have, where you are and what you want to achieve.
